Optical Lab

Overview

Wafer-level optical test and thin-film characterization built for silicon-photonics (SiPh) product development.

Driven by Telecom/Datacom, HPC and AI, SiPh offers greater bandwidth, low-latency transmission over longer distances, low power and high package integration. ASE developed comprehensive optical testing to support these products.

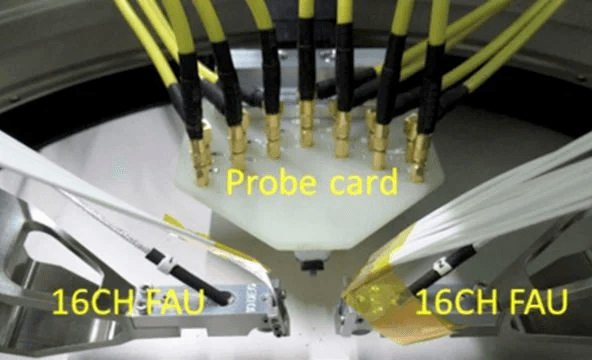

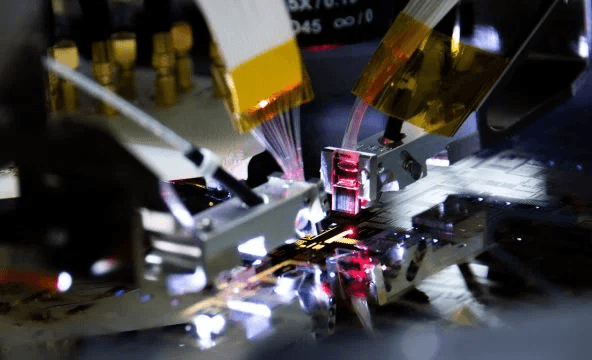

Silicon-photonics wafer-level optical testOptical probe card and fiber array units

Wafer-level test

Optical and electrical test (O/O and O/E) for 200 mm and 300 mm photonics wafers.

  • Optical insertion loss (IL) / polarization-dependent loss (PDL) spectrum sweep; photodetector (PD) responsivity measurement
  • Grating-coupler test at various incident angles (e.g. 8 / 10 / 12°) with single-mode fiber (SMF) or multi-channel fiber-array unit (FAU) as optical probe
  • C-, L- or O-band tunable laser (1240–1380 nm / 1490–1640 nm) with polarization synthesizer and multi-channel optical power meter

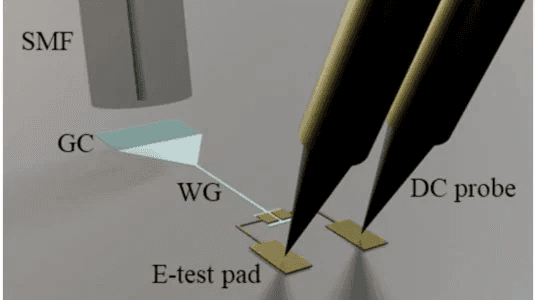

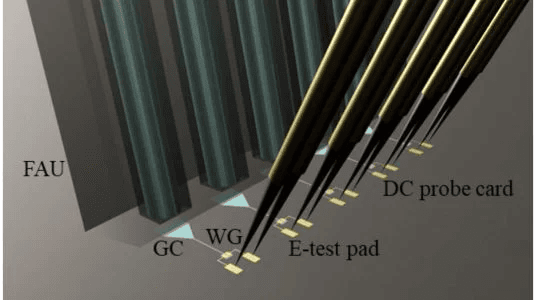

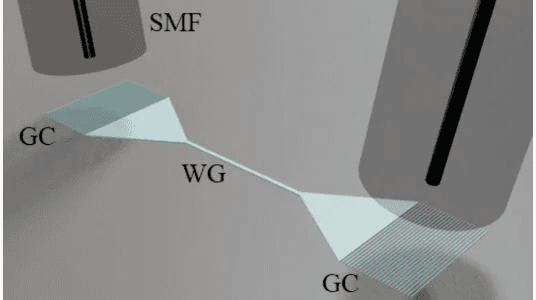

Optical-to-optical testing with single-mode fiberOptical-to-electrical testing with single-mode fiber and DC probeOptical-to-electrical testing with FAU and DC probe cards
O/O testing with SMFO/E testing with SMF and DC probeO/E testing with FAU and DC probe cards

Thin-film

Optical thin-film Characterization, Modeling and Simulation

  • Transmittance / reflectivity
  • Wavelength spectrum
  • Dimension measurement
  • Optical structure optimization

See Other labs
