PowerSiP™
Overview
A vertical power-delivery platform that shrinks the voltage-regulator footprint and cuts power loss for AI and data centers.

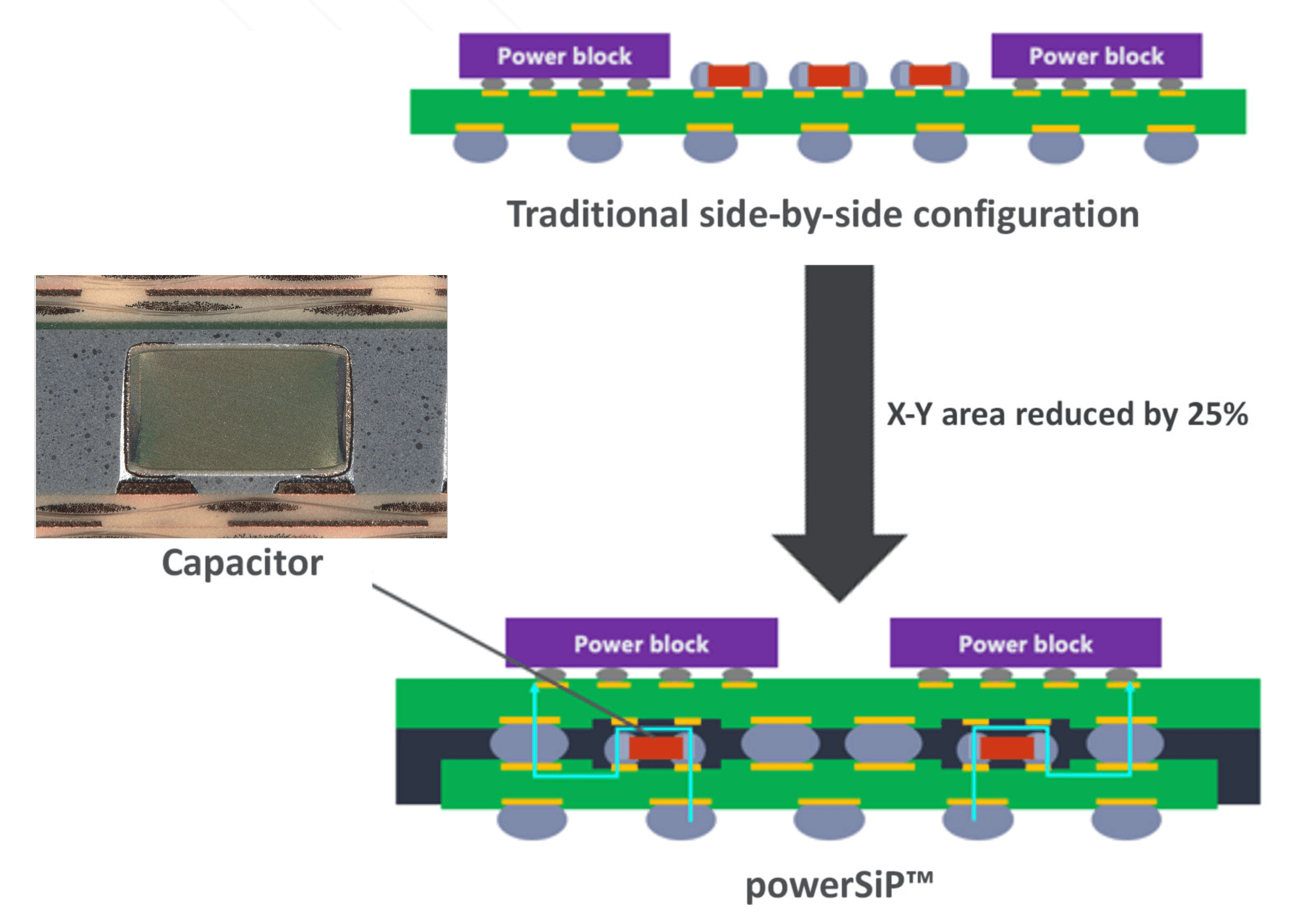

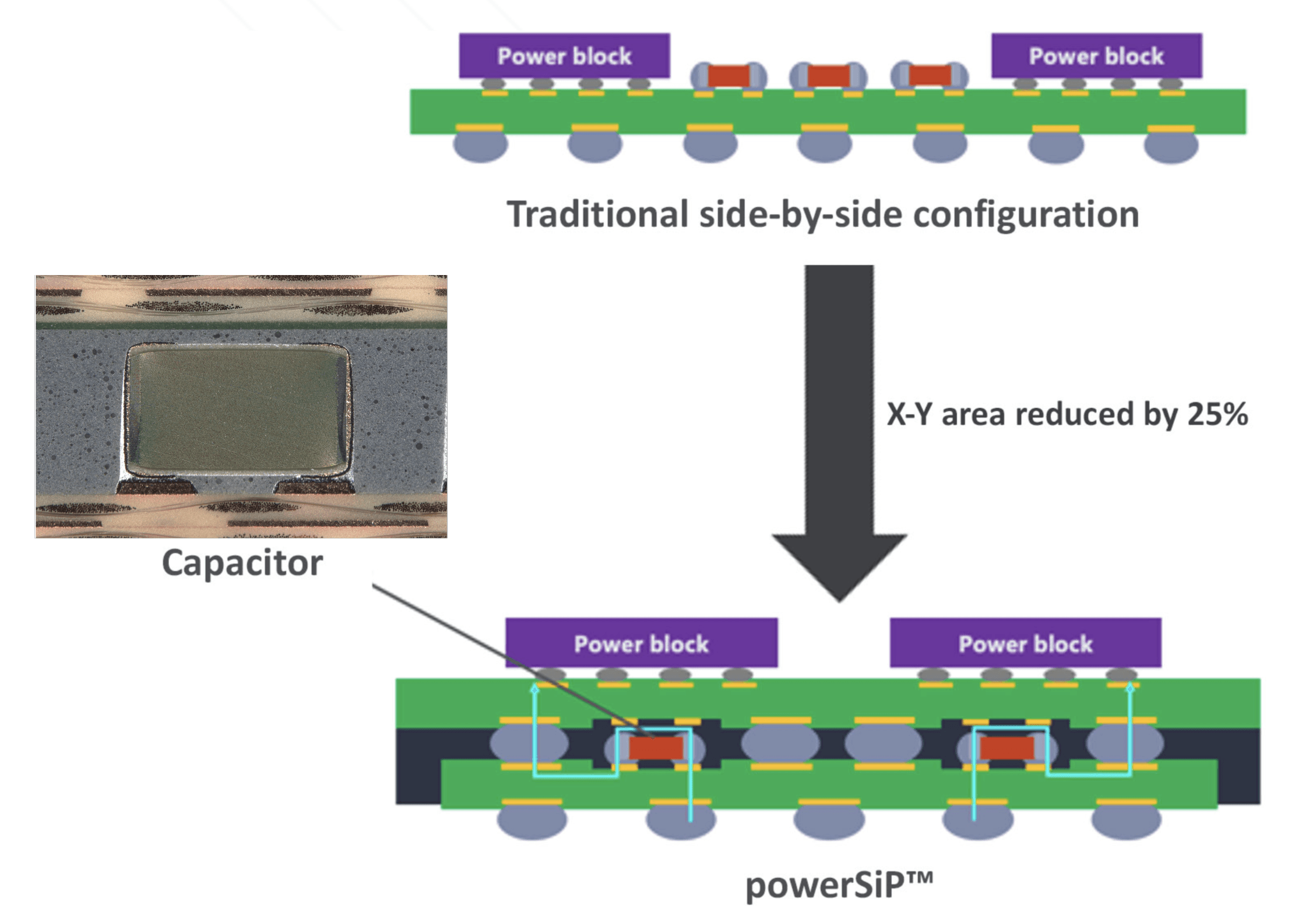

ASE introduced powerSiP™, a power-delivery platform built to reduce signal and transmission loss while addressing current-density challenges. It enables a vertically integrated multi-stage voltage regulator module (VRM) for higher system efficiency and lower power consumption, with a footprint 25% smaller than traditional side-by-side configurations.
Features
Technology innovation
- Enables a vertically integrated multi-stage voltage regulator module (VRM) for higher efficiency and lower power consumption
- Increases power efficiency by 50% in AI and data-center applications by raising current density from 0.4 A/mm² to 0.6 A/mm²
- Cuts routing power loss from 12% to 6%, a 50% reduction versus a side-by-side configuration
- Can place the voltage regulator directly under the SoC and chiplets; vertical integration supplies large current over a short delivery path
- Reduces impedance in the power-delivery network (PDN), improving performance while raising efficiency and power density
- Designed to meet data-center requirements and the power expectations of AI and HPC applications
The powerSiP™ platform is available now and will expand in line with industry roadmaps and application requirements.
